Place of Origin:
CHINA
Brand Name:
XINYU
Model Number:
JH04-L

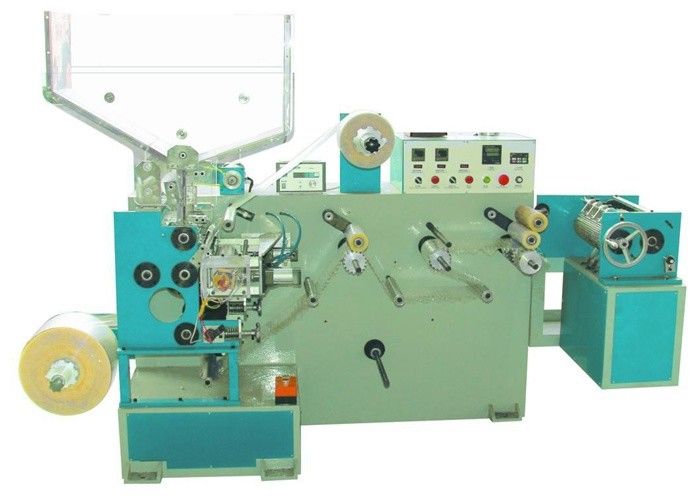

JH04-L Hi-speed I-Shape Tetra-Pack Straw Packing Machine

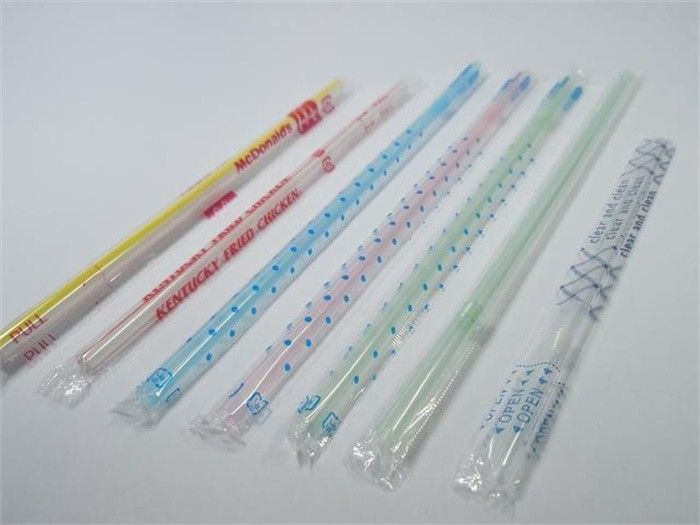

The machine can pack single straw into BOPP film in connecting packages with one by one row pattern.
Silicone vacuum hub and pressure heating sealing roller are used on the sealing mechanism, so, it can make the spaces between straw packages very even, and embossing is clarity, machine running smoothly and efficiently.
Hot connecting cutting and cold split cutting are optional in cutting part. It is a replacement model for JH04-I single straw packaging machine.
Characteristic:
1) Optimize structure, highly effective, easy and stable operation
2) Has protection device to avoid breaking packaging films when machine stop
3) Straw length can be adjusted within a certain range
4) Tension controller is used to keeping the BOPP film bag in evenly
Optional equipment
1) Hot connecting cutting, or cold split cutting
2) Easy tears cutter when using cold split cutting
3) Cutting device for cutting off package film edge
Parameter
| Model | JH04-L |
| Speed(pcs/min) | 700 pcs/min |
| Straw size | one fixed dia. Can be selected from 2 to 7.0 mm length 100-260 mm |
| Package size | width 115-275mm |
| Total power | 3Kw |
| Power supply | 380V/220V |
| Dimension | (L×W×H)2300×900×1600mm |
| Weight | 450Kg |
