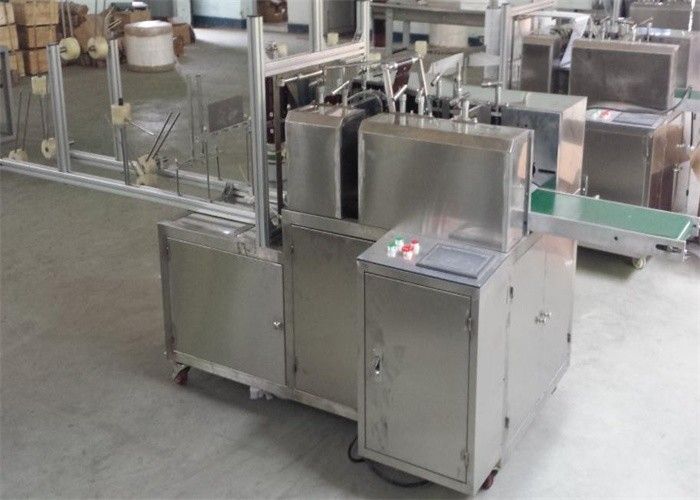

High Output Automatic Alcohol Swab Making Machine No Leakage No Bubbles

ZMJ-AHO Automatic Alcohol Swabs Packaging Machine

Feature:

1, Add fluid volume is higher on the premise of the sealing closely, no leakage, no bubbles;

2, High output: 100-120pack/min

3, Piece of non-woven fabric specifications in general for the 100 x 25 mm: folded after 25 x 25 mm, 4 layer (2) non-woven folding;

This machine is a professional manufacturer of alcohol disinfection swabs of equipment

Technological process;

Non-woven fabric and packaging film on the machine → cut off →Non-woven lateral fold 2 times →Add fluid, folded into the bag →bag-make →packing →sealing →Output packaged products

Main technical parameters

Specifications: ZMJ - AHO

Alcohol piece unfold size: 100 mm x 25 mm

Slice of alcohol size: length of 25 mm x 25 mm wide;

Wet wipes folding method: folded twice, 4 layers;

Bag size: 50 mm x 50 mm;

Processing capacity: 100-120 bags/min;

Packaging film material: 73-110g / ㎡ paper aluminum composite membrane wrapping paper;

Packaging film specifications: Φ≤ 350 mm, width is 200 mm, inner diameter of paper core is 76.2mm;

Applicable wipes materials: volume, 30 to 60 g / ㎡ spunlace nonwoven;

Non-woven raw material specifications: 600mm or less in diameter, width is 25mm;

The raw material of paper core diameter: Φ 76.2mm(= 3 ")

The total power: 220 v, 50 hz, 2.6 kw;

Dimensions:2000 x 1000 x 1500 mm ;

Packing size: 2200 * 1300 * 1600 mm

Main configuration;

1,Intelligent packaging machine controller. Patent product. (bag length setting, automatic color code tracking and counting)

2,Four edge-sealing bag, packing seal system (double row of bag making, sealing lines with a checkered);

3,Intelligent temperature control system;

4,Quantitative pouring liquid;

5,Longitudinal intelligent photoelectric trademark positioning system;

6,Packaging film roll transverse manual correction system;

7,Non-woven fabric rolling, folding, cutting mechanism;

8,Cloth coated with stainless steel shield, the main contact parts adopt stainless steel material or rust material manufacturing;

9,Electrical control box (including control panel, abrupt stop switch, switch to adjust conveyor belt, electrical switches, temperature control instrument panel);
