Multi Direction Powder Mixer Machine 99.9 Percent Mixing Rate 300kg Load

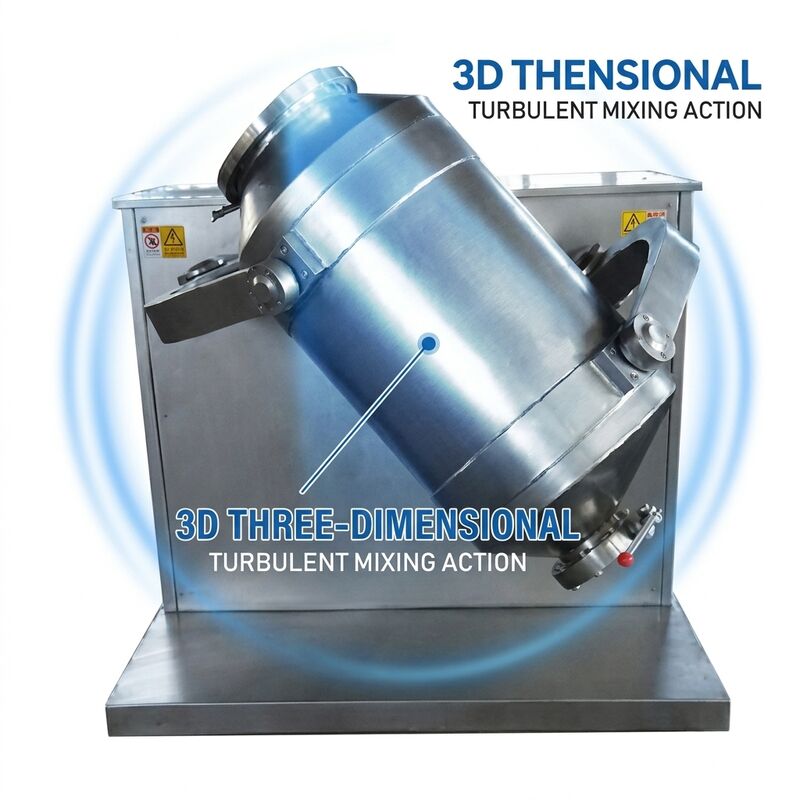

Most blenders mix by throwing material against a wall and hoping it comes back. The HD-600 multi direction powder mixer machine works differently: the barrel is mounted on a frame that turns it in two planes at once, so the powder performs a compound tumbling motion with no single centrifugal axis. That is why material of different bulk density does not segregate, laminate or accumulate at the ends, and why the measured mixing rate reaches 99.9% instead of the 85% to 92% typical of a single axis tumbler.

Because the multi direction powder mixer machine needs no internal shaft, baffle or agitator, the barrel is a smooth, polished, fully draining vessel with radiused transitions that meets GMP requirements and cleans in minutes. The absence of an internal agitator also means there is no dead zone, no seal to leak and no metal to metal contact, which matters for abrasive powders and for products where a single black particle is a reject.

• 99.9 Percent Mixing Rate: the compound motion of the multi direction powder mixer machine eliminates gravity segregation and lamination, so even a 1% low dose active is distributed uniformly across a 300 kg batch.
• Multi Direction No Segregation: because there is no single centrifugal axis, heavy and light particles cannot separate at the barrel ends, which is the classic failure mode of a V blender or a double cone blender.
• 80 Percent Loading Capacity: the barrel accepts up to 480 L in a 600 L vessel, twice the fill ratio of a conventional mixer, so the same batch needs a smaller machine and a shorter cycle.
• 8-15 rpm Gentle Movement: the slow compound rotation suits fragile granules, coated pellets and agglomerates, and blending is normally complete in 10 to 20 minutes.
• No Internal Agitator: the smooth radiused barrel has no shaft, no baffle and no seal in contact with the product, so cleaning is fast, there is no dead corner and abrasive wear is minimal.
• Polished GMP Barrel: internal and external surfaces are precision polished, the discharge is a fully draining butterfly valve and the barrel can be supplied with a charging butterfly for closed transfer.

The multi direction powder mixer machine is used where uniformity is measured and segregation is not acceptable:

1. Pharmaceutical and nutraceutical final blend with a low dose active, where content uniformity is tested batch by batch.
2. Food premix such as vitamin, mineral, flavouring and spice blend, where separation shows up as a taste defect.
3. Chemical powder blend including pigment, catalyst and additive masterbatch with wide particle size spread.
4. Granule and pellet homogenizing before tableting or capsule filling, with minimal attrition.
5. Metal powder and abrasive material blending, where an internal agitator would wear or contaminate the batch.

Because the multi direction powder mixer machine loads and discharges through butterfly valves, it can be integrated into a closed transfer line with a bin or an IBC, so the product stays protected from the room environment from blending to packaging.

How can the mixing rate reach 99.9%? Mixing rate is measured by sampling a tracer across the batch. The compound motion of the multi direction powder mixer machine turns the whole bed over many times in two planes, so after 10 to 20 minutes the sampled variation falls below the detection limit of the assay.

Does 80% loading really work? Yes, for free flowing powders. The 600 L barrel holds 480 L, and the limit is the 300 kg maximum loading weight rather than the volume, so a dense powder reaches the weight limit first and a light powder reaches the volume limit first.

What is the difference from a V blender? A V blender relies on two inclined cylinders splitting and recombining the stream, which leaves the ends as low shear zones. The multi direction powder mixer machine keeps the entire bed in motion, so segregation at the ends cannot happen.

How long does a batch take? Typically 10 to 20 minutes at 8 to 15 rpm, including a two minute charge period. Because there is no agitator, the multi direction powder mixer machine produces almost no heat and no attrition, which suits coated pellets.

The multi direction powder mixer machine ships as a complete frame and barrel assembly braced inside an export plywood case with the control cabinet packed separately. Dynamic balance of the barrel, a no load rotation test, weld inspection, internal polish inspection and electrical safety verification are completed before dispatch, and a material certificate plus a surface roughness report accompany each unit. The warranty covers 12 months, and drive belts, bearing sets, butterfly valve seals and control components are supplied as a two year spare kit with installation drawings.
