Place of Origin:
CHINA
Brand Name:
XINYU
Model Number:
SYH100

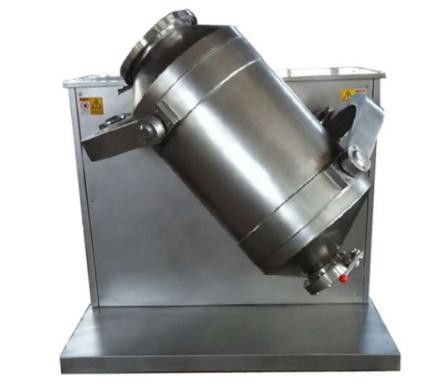

Industrial rotary drum 3D food powder mixing machine
This machine is a high efficiency mixing equipment, each batch of material mixing time is 10 - 20 minutes.
The equipment for the production of stainless steel, easy to clean, material cylinder material for the SUS304 stainless steel, for the arc transition, and through the precision polishing processing, in compliance with the GMP requirements.
Materials in the mixing process without centrifugal force, no specific gravity segregation and stratification accumulation phenomenon, each component can be uniformly mixed in different weight ratio, mixing rate of 99.9%. loading coefficient, can reach 80% (ordinary mixer only about 40%) and the mixing time is short, is one of a variety of mixer the ideal product.
The equipment is compact in structure and convenient in operation.
Parameter
Model | SYH-100 |
Volume | 100L |
Max Filling Volume | 80L |
Mixing Time | 10-20MIN |
Power | 2.2KW |
Overall Dimension | 1800*1200*1500mm |
Weight | 550KG |
Motor configuration | Y100L1-4 |
Device configuration: the machine seat, gear transmission system, electric control system, multi direction movement mechanism and the mixing barrel and other components, some direct contact with the material made of SUS304 stainless steel materials, The inner and outer walls of the barrel are polished and no dead angle.
Configuration List
Serial | Name | Specification | Quantity | Material |
1 | Mixing cylinder | 100L | 1 | SUS304 |
2 | Body frame | SYH-100 | 1 | Outside of 304 |
3 | Butterfly valve | Dg150 | 1 | SUS304 |
4 | Motor | Y100L1-4 2.2KW | 1 | Subassy |
5 | Worm reduction gear | CWU100-31.5-I | 1 | Subassy |
6 | Main electrical components | standard parts | 1 | Subassy |
7 | Triangular belt | B Type L=1194 | 2 | Specialty elastomer |
8 | Chain | 12A-3X64 | 1 | Special steel |
9 | Falling Positioning probe | 1 | Subassy | |
10 | Inverter | 2.2KW | 1 | Subassy |
