Multi-Purpose Large-Capacity Centrifugal Spray Dryer LPG250-M Industrial Drying Equipment PLC Automated Control System

The LPG250-M Multi-Purpose Large-Capacity Centrifugal Spray Dryer represents the pinnacle of versatile industrial drying technology, engineered to serve as a single-platform solution across food, chemical, ceramic, pharmaceutical, and mineral processing operations. With a water evaporation capacity ranging from 250 to 350 kg/h and configurable material of construction options from 304SS to 316SS stainless steel, this system adapts to diverse production requirements without compromising performance. The advanced PLC automation architecture with fuzzy logic algorithms continuously monitors and adjusts all critical process parameters including inlet and outlet temperatures, atomizer speed, feed rate, tower pressure, and exhaust humidity, enabling recipe-driven product changeover and consistent batch-to-batch reproducibility across the entire operational spectrum.

• 250+ kg/h High-Capacity Processing: Large-diameter drying tower with optimized height-to-diameter ratio provides extended droplet residence time, enabling complete moisture evaporation even at high throughput rates without compromising final powder quality.

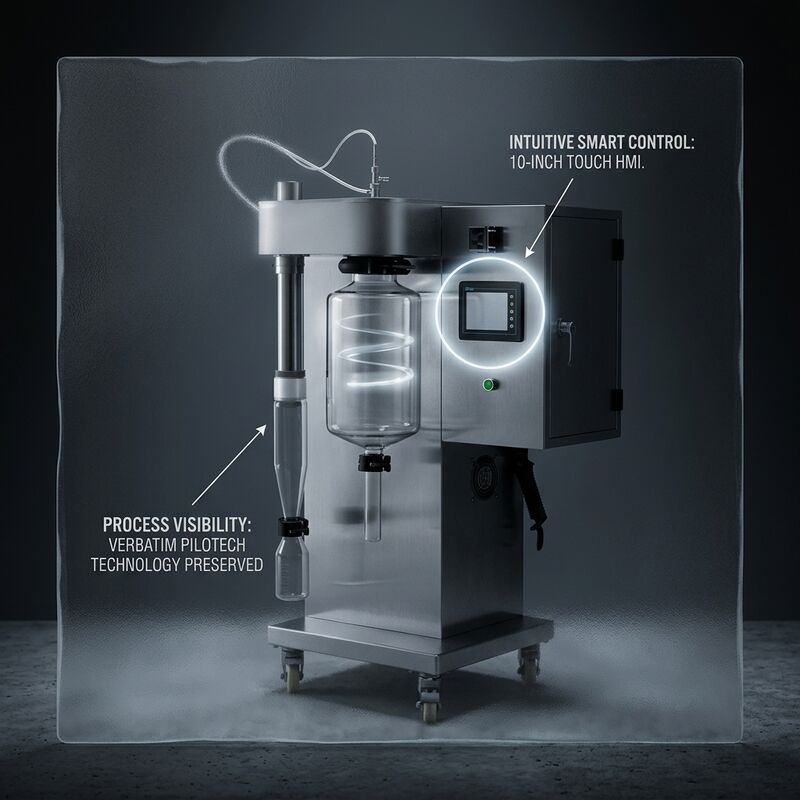

• Full PLC Automation Architecture: Siemens or Mitsubishi PLC controller with 10-inch color touch screen HMI executes recipe-based production programs, logs historical trend data, and supports optional remote monitoring via industrial Ethernet connectivity for Industry 4.0 integration.
• Cross-Industry Versatility: Configurable material contact surfaces, interchangeable atomizer discs, and adjustable heating configurations allow the same unit to process dairy powders, chemical intermediates, ceramic granules, and pharmaceutical excipients with simple parameter changes.
• Triple-Stage High-Efficiency Recovery: Primary cyclone, secondary diffusion cyclone, and tertiary water film scrubber in series achieve ≥99.5% total powder recovery rate while treating exhaust to environmental compliance standards with recycle-capable absorption liquid.
• Modular Heating System: Customer-selectable heat source configuration including steam heat exchanger with electric trim heating, direct natural gas burner, thermal oil circulation, or indirect hot air furnace, enabling adaptation to local utility costs and availability.
• Intelligent Anti-Coking Design: Computational fluid dynamics validated tower geometry with natural air-cooling jacket maintains inner cone wall temperature below 50°C, while three programmable pneumatic hammers automatically dislodge any powder accumulation at user-defined intervals.
• Rapid Product Changeover: Full CIP (Clean-in-Place) compatibility with spray ball connections on all process vessels, quick-release inspection ports, and hinged access doors enables thorough cleaning between incompatible product campaigns without equipment disassembly.

The LPG250-M multi-purpose design makes it the preferred choice for contract manufacturers, toll processors, and diversified production facilities requiring a single drying platform to serve multiple industries. In food processing, the unit handles whole milk powder, whey protein concentrate, coffee creamer, egg powder, maltodextrin, and fruit juice powder with full sanitary configuration. For chemical operations, it processes polycarboxylate ether superplasticizer, precipitated silica, detergent enzymes, pigment dispersions, and agrochemical water-dispersible granules. In the ceramic and advanced materials sector, applications include alumina and zirconia press powders, ferrite granules, and thermal spray feedstock. The system also accommodates pharmaceutical excipient drying including mannitol, sorbitol, and microcrystalline cellulose under GMP conditions. Mineral processing applications extend to kaolin, bentonite, and calcium carbonate powder production where high throughput and consistent particle size distribution drive operational economics.

Each LPG250-M spray drying system undergoes comprehensive pre-shipment validation including full-load water trial runs with temperature uniformity verification across the entire tower cross-section, atomizer dynamic balance testing at maximum operating speed, PLC I/O loop checks, and emergency shutdown sequence validation. The disassembled equipment ships in multiple ISPM 15 certified fumigated wooden crates with each crate individually numbered and documented against the packing list. Heavy structural components receive zinc-rich epoxy primer coating, stainless steel sections are wrapped in multi-layer VCI film and polyethylene, while instrumentation and control panels ship in separately crated climate-controlled containers with desiccant packs. Complete documentation package includes certified dimensional drawings, P&ID flow diagrams, electrical single-line and wiring schematics, PLC program backup on USB, material test reports, weld NDT records, surface finish certification, and factory test reports. Two factory-trained engineers are allocated for up to 15 days of on-site installation supervision and commissioning support. Standard warranty provides 12 months from successful commissioning or 18 months from shipment date, covering all manufacturing defects in materials and workmanship.
