Humic Acid  Paste Material Rotary Vacuum Harrow Dryer

Humic Acid  Paste Material Rotary Vacuum Harrow Dryer

 paste material Vacuum Harrow Dryer

humic acid Vacuum Harrow Dryer

 paste material Rotary Vacuum Dryer

Place of Origin:

CHINA

Brand Name:

XINYU

Model Number:

ZPG

Contact Us
Request A Quote
Product Details
Products Name:
Roller Scraper Dryer For Humic Acid
Raw Material:
304SS/316SS
Feature:
Button Type/PLC
Application:
Liquid Raw Material Or Sticky Material
Condition:
New
Warranty:
One Year
Type:
Vacuum Drying Equipment
Highlight:

 paste material Vacuum Harrow Dryer

,

humic acid Vacuum Harrow Dryer

,

 paste material Rotary Vacuum Dryer

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
USD
Delivery Time
30-50 days after receive the down payment
Supply Ability
20
Product Description

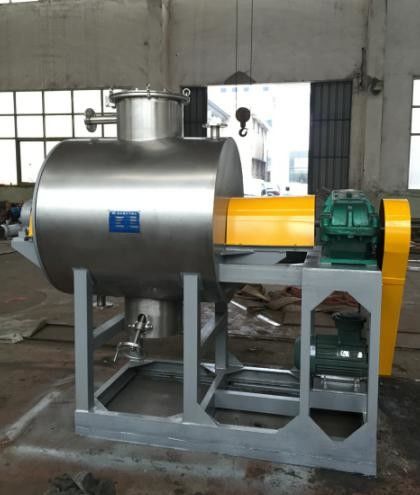

ZPG-500 Vacuum Harrow Dryer



Equipment profile



Vacuum harrow dryer, mainly used for explosive, easy to oxidize, paste material drying. Operating under high vacuum, the boiling point of the solvent decreases and the air is isolated to avoid oxidation and overheating deterioration during drying.

Applicable materials

The main structure of the rake vacuum dryer is a horizontal cylinder container with a jacket, with a low speed mixing shaft and a rake tooth arranged in a certain direction on the shaft. There are two forms of mixing shaft, one is non-heating rake tooth shaft, the other is hollow rake tooth shaft which can enter hot medium. The jacket is filled with heating medium (hot water, hot oil, steam). A quantitative wet material is added to the cylinder, and the rake shaft agitates the material to make the material heat evenly. Under the control of the time relay, the rake shaft runs according to the requirements of a certain time interval. The operation period is set by the user according to the process operating conditions of the material. The dried material in the cylinder is stirred regularly by the rake shaft until the material is dried to the process requirements. A vibrating rod is installed in the cylinder (determined by the drying characteristics of the material). With the rotation of the rake tooth shaft, the vibrating rod falls freely, and the dry material adhered to the shaft and the cylinder wall by the self-weight of the vibrating rod is vibrated. At the same time, it has the function of material. The upper part of the inner cylinder is equipped with a vacuum interface, which is connected to the vacuum system to make the dried material heated and dried under negative pressure, which can ensure that the dried material is heated at low temperature and does not destroy the physicochemical properties of the material. After the material reaches the drying requirement, open the discharge valve in the lower part of the cylinder and let the material move to the middle of the rake shaft.

Features:

1. Materials dry evenly, avoid oxidation, overheating can get very low moisture content products without crushing operation can be packaged.

2. Evaporation intensity is high, generally can evaporate 10-15 kg( water)/ m2·h

3. No air intervention, condenser load is very small, easy to recover material solvent.

4. Solvent steam entrainment is filtered by bag filter and removed without environmental pollution.

5. Discharge mode is short neck ball valve, easy to discharge.

6. Hot medium can be steam, hot oil, hot water.

7. This equipment is equipped with double-end mechanical seal, with better sealing performance.



Equipment parameters:



Seriel# Item Parameter
1 Model ZPG-500
2 Volume 500L
3 Coefficient ~0.6
4 Cylinder dimension ɸ600*1500mm
5 Speed 2~6rpm
6 Transmission power 3kw
7 Vacuum degree -0.095mpa
8 Working temperature <50℃
