Biochemistry Triple Pass Rotary Vacuum Dryer Stainless Steel Rotary Dryer Machine

Biochemistry Triple Pass Rotary Vacuum Dryer Stainless Steel Rotary Dryer Machine

rotary dryer machine

vacuum freeze drying machine

Place of Origin:

CHINA

Brand Name:

XINYU

Model Number:

SZG100 Stainless steel Double conical rotary drum vacuum dryer

Contact Us
Request A Quote
Product Details
Products Name:
SZG100 Stainless Steel Double Conical Rotary Drum Vacuum Dryer
Raw Material:
304SS/316SS
Feature:
Button Type/PLC
Application:
Granules,crystal Materials,pharmaceutical,chemical And Food
Highlight:

rotary dryer machine

,

vacuum freeze drying machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
USD
Delivery Time
30-50 days after receive the down payment
Supply Ability
20
Product Description

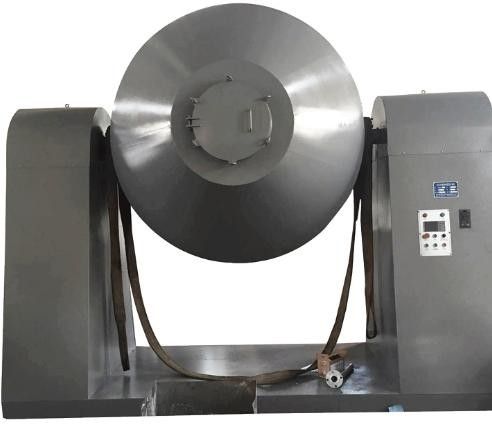

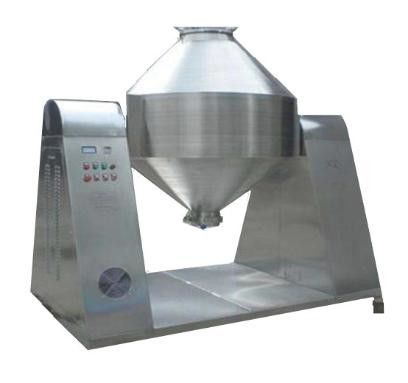

SZG100 Stainless steel Double conical rotary drum vacuum dryer



Applications:


It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature (for example, biochemistry) products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.



Principle:



Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;

Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized;

The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material become saturation and will evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.



Features:



1.When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Its temperature of operation can be adjusted form 20-160 .
2.Compared to ordinal dryer, its heat efficiency will be 2 times higher.
3.The heat is indirect. So the raw material can not be polluted.

4.It is in conformity with the requirement of GMP. It is easy in washing and maintenance.



Technical parameter:



Model SZG-100 SZG-350 SZG-500 SZG-750 SZG-1000 SZG-1500 SZG-2000
Total volume (L) 100 350 500 750 1000 1500 2000
Loading volume (L) ≤50 ≤ 175 ≤ 250 ≤ 375 ≤ 500 ≤ 750 ≤ 1000
Rotary speed (r/min) 3-13
Motor power (kw) 0.75 1.1 1.5 2 3 3 4
Rotary height (m) 1.75 2.1 2.25 2.49 2.8 2.94 2.99
Tank inner pressure (Mpa) -0.1-0.15
Clip set pressure (Mpa) ≤ 0.3
Working temp.(°C) Inner tank ≤ 85 Clip set ≤ 140
Heating media Steam, Hot water, Heat transfer oil
Weight (kg) 800 1100 1200 1500 2800 3300 3600
Floor area (L*W) 2160*800 2260*800 2350*800 2550*1000 2860*1300 3260*1400 3760*1800
