Place of Origin:
CHINA
Brand Name:
XINYU
Model Number:
ZP-17D Rotary Tablet Press Machine

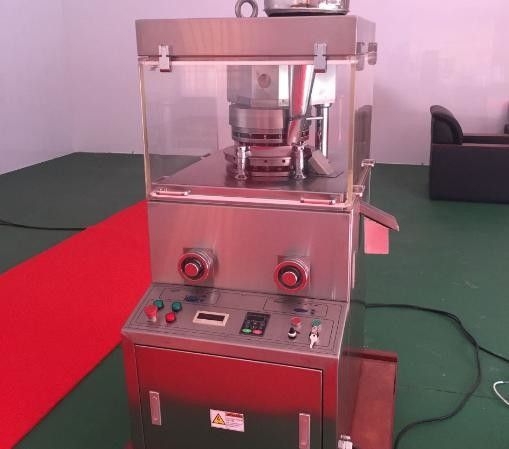

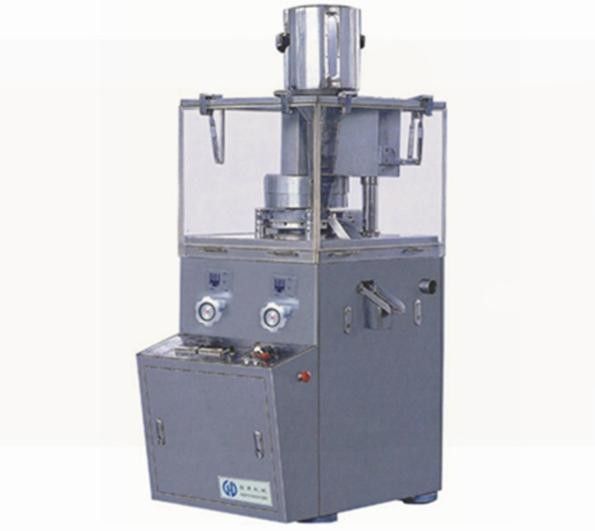

ZP-17D Rotary Tablet Press Machine
ZP-17D Rotary Tablet Press is suitable for pressing round tablets form various kinds of granular materials, but also different geometrical shape tablet, specially for small-scale batch production. During operation, the speed of turret rotation, the depth of filling material and the thickness of the tablets can be adjusted. The pre-pressure unit and over-load protection unit is included in the system. The mechanical buffer unit will prevent punches and apparatus from overload damage. A power suction unit is attached to take the residual power during operation, so that the blockage by the residual power can be eliminated and collected power material can be reused.
Technical Parameters
| Model | ZP-17D |
| Dies (sets) | 17 |
| Max. Pressure (kn) | 50 |
| Max. Depth of Fill (mm) | 18 |
| Max. Dia. of Tablet (mm) | 20 |
| Max. Thickness of Tablet (mm) | 7 |
| Production Capacity (pc/h) | 40800 |
| Motor (kw) | 2.2 |
| Overall Dimension (mm) | 980x780x1800 |
| Net Weight (kg) | 980 |
