Professional Rotary Tablet Press Machine / Tablet Compression Machine

Professional Rotary Tablet Press Machine / Tablet Compression Machine

pill press machine

tablet press equipment

Place of Origin:

CHINA

Brand Name:

XINYU

Model Number:

ZP17/19 Rotary Tablet Press Machine

Contact Us
Request A Quote
Product Details
Products Name:
ZP17/19 Rotary Tablet Press Machine
Raw Material:
304SS/316SS
Feature:
Automatic,PLC,Touch Screen
Application::
Tablet,pill
Highlight:

pill press machine

,

tablet press equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
wooden standard packing
Delivery Time
30 days after receive the down payment
Supply Ability
30
Product Description

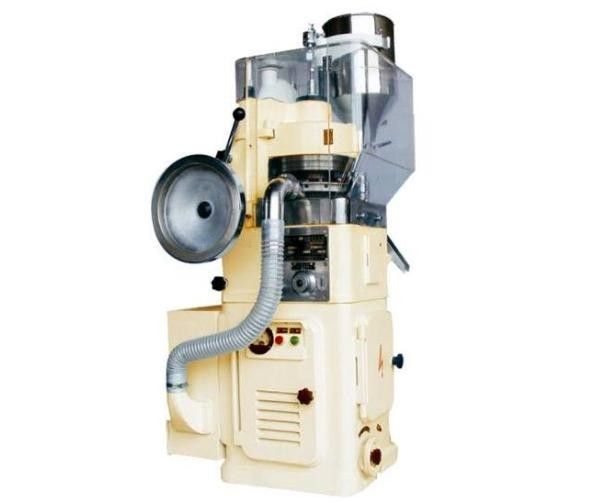

ZP17/19 Rotary Tablet Press Machine

Application:

ZP17/19 Rotary Tablet Press is suitable for pressing round tablets from various kinds of granular materials, but also different geometrical shape tablets, specially for small-scale batch production. During operation, the speed of the turret rotation, the depth of the filling material and thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder operation, so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.



Technical Parameters



Model ZP-19 ZP-17
Dies (sets) 19 17
Max. Pressure (kn) 40 50
Max. Dia. of Tablet (mm) 12 20
Max. Depth of Fill (mm) 15 15
Max. Thickness of Tablet (mm) 6 6
Turret Speed (rpm) 20-40 20-40
Production Capacity (pcs/h) 25000----45000 20000----40000
Motor (kw) 2.2 2.2
Overall Dimension (mm) 880x750x1600 880x750x1600
Net Weight (kg) 560 560
