Condom Automatic Packing Machine 30 ~ 80 Bags / Min Convenient Adjustment

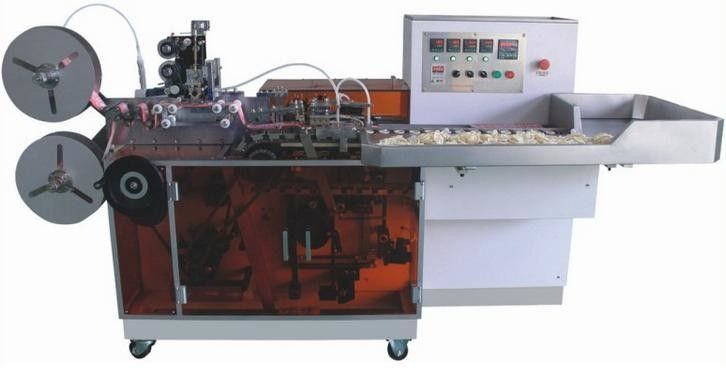

BTS68 New type Automatic Condom Packing Machine

1. Product use:

This machine is installed according to the domestic and foreign existing safety collar for a horse on the basis of the introduction, digestion, absorption, innovation and independent development and the combination of the developed, is currently the most advanced, most reliable safe collar for a horse installed;Its main features are low noise, convenient adjustment, the improved the mechanical structure is more reasonable and fully guarantee the service life;Can automatically complete the feeding, film, condoms stretched, heat sealing, indentation, single package and any cutting, automatic package count drops of oil, can also according to customers need to add to the graphic layout (flowers), printing, and other functions, but also set aside the automatic machine set the interface to meet part of the customers' needs.

2. The performance characteristics:

1. The whole machine adopts vertical plate rack installation parts to make more space to adjust and maintenance, make up the old packaging machine space is small, thin parts instead of the shortage of the life.
2. The increase of the CAM make the machine running more stable, and the noise reduced to about a quarter of the old packaging machine.
3. Unique to institutions make packaging film on both sides of edge more accurate, more convenient adjustment.
4. Independent cutter institutions overcome the old packing machine which fault many questions.
5. Push the new set of institutions greatly reduces the mechanical noise, and make the manipulator jacketed more accurate and reliable.Graphic version of institutions (to) make packing more beautiful, generous.
7. Adopt imported frequency control of motor speed, and the adjusting knob installed on the control panel, can be attached to the growth and slow down when, overcome the problems of old packing machine speed is not convenient.
8. The safety of the original hand device make adjustment and maintenance more convenient, more secure.
9. The total transmission of new safety insurance device can make the adjustment error boot or runtime hard objects into the mechanical damage to the machine parts.
Power single-phase 200 v, 50 hz input, can install machinery, anytime and anywhere without being limited by the three-phase electricity.
11. All the more stainless steel housings make the machine more luxury and environmental protection.

The main parameters:

Packing materials: PP/PE composite film, aluminum foil composite membrane, etc
Roller diameter: 300 mm
Packing speed: 30 ~ 80 bags/min
Film roll aperture: φ76.2mm
Voltage and power:220,50hz,2.0kw

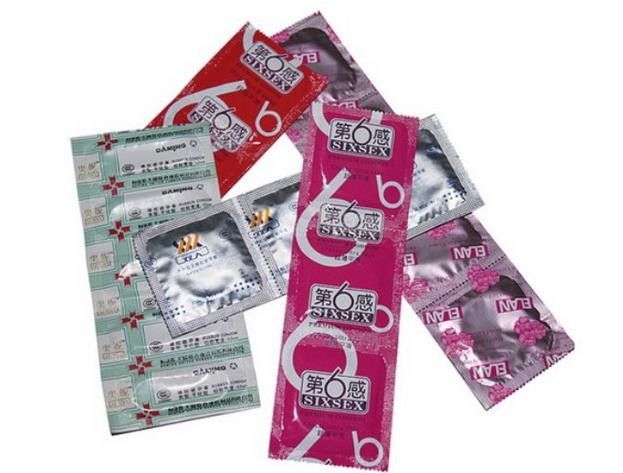

Bag making size: 68 mm x 30 mm
Main motor power: 1.1 kw
Peripheral sealing range: 5 mm
Weight: 750 kg
Dimensions: 2300 mm * 900 mm * 1320 mm
