GZM-50A Pneumatic Valve Packaging Machine

GZM-50A Pneumatic Valve Packaging Machine

high speed blister packing machine

quantitative filling machine

Place of Origin:

CHINA

Brand Name:

XINYU

Model Number:

GZM-50A Pneumatic Valve Packaging Machine

Contact Us
Request A Quote
Product Details
Products Name:
GZM-50A Pneumatic Valve Packaging Machine
Raw Material:
304SS/316SS
Feature:
Automatic,PLC,Touch Screen
Application::
Fluid Powder Or Small Grain
Highlight:

high speed blister packing machine

,

quantitative filling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
wooden standard packing
Delivery Time
30 days after receive the down payment
Supply Ability
30
Product Description

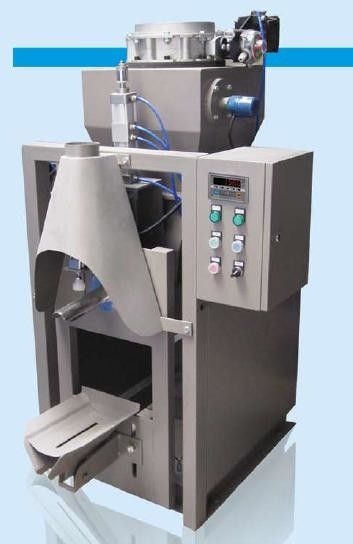

GZM-50A Pneumatic Valve Packaging Machine



Products introduction:



The machine with high degree of automation, simple operation, with newly developed automatic bag unloading device, just needs workers insert the bag (adapt the valve bags) to complete the packaging production process, save labor (3-4 people), reduce labor intensity greatly reduce production costs and improve productivity. Fitting to pack the fluid powder or small grain (<=5mm), use the compressed air to make the motive power. The compressed air makes the material in the sealed container to flow through the atomizer, to fulfill the feeding function of the material. The sealed container adopts the gas rubber valve, people control the across volume through the valve to control the feeding quantity of the packing material, achieve the stable and effective packing accuracy and speed. The production line can produce a variety of dry products:insulation mortar, adhesive mortar, cracking mortar, dry adhesives, self-leveling mortar, dry powder putty and other materials products.



1,The feed end with packing warehouse, top with pneumatic butterfly valve or pneumatic plug valve , pressure

positions to ensure the filling rate and improve the reliability of the quantitative accuracy.

2,Devices with built-in dust collector , reducing dust in the environment is conducive to the protection of the operator

and the environment protection .

3,Packing with high speed, accuracy and stability.

4,Especially for dry mortar Packaging Materials



Technical Parameters:



Model GZM-A1 GZM-A2 GZM-A3 GZM-A4
Suitable material fluid powder or small grain(<=5mm),such as cement, sand, dry powder.
Weighing form gross weight
Nozzle Single nozzle Double nozzle Triplicate nozzl fourfold nozzle
Packing weight 10~50Kg
Accuracy 0.2-0.5kg
Speed 250-400 500-700 700-1000 1000-1300
Gas power 0.6MPa
Environment Temperature :-20℃~45℃relative humidity:95%(none dew)
Power AC220V 50Hz
Max power 0.1KW 0.2 KW 0.3 KW 0.4 KW
Consumption 0.7m3/min 1.4m3/min 2.1m3/min 2.8m3/min
Dimension 650x1270x1600 1300x1270x1600 1950x1270x1600 2600x1270x1600
Device weight 600Kg 1200Kg 1800Kg 2400Kg
