Place of Origin:
CHINA
Brand Name:
XINYU
Model Number:
XY-86B Type Drip Coffee Inner and Outer Bag Packing Machine

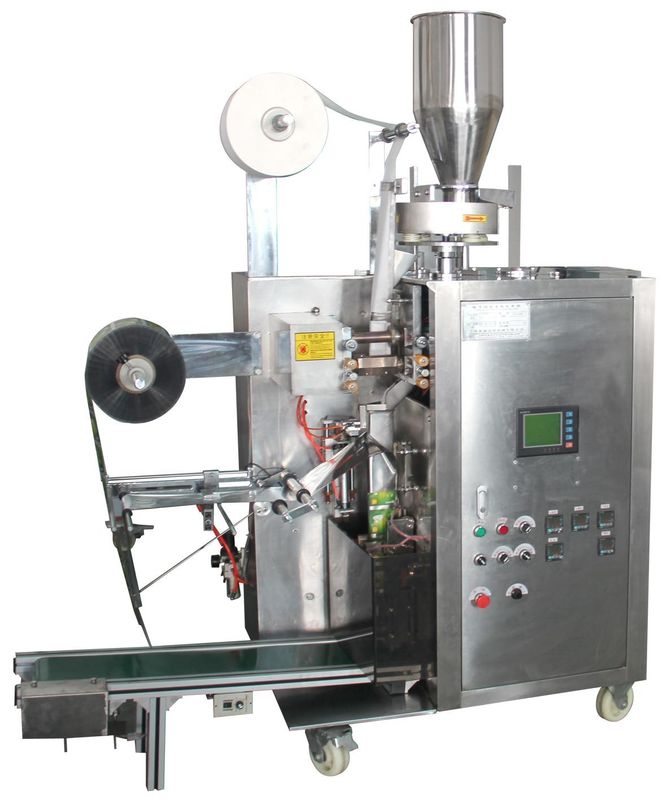

XY-86B Type Drip Coffee Inner and Outer Bag Packing Machine
Scope of application:
The machine is suitable for tea, herbal tea, health tea grassroots small particles inside and outside the bag, such as disposable packaging.
Features:
Outside sealing paper is controlled by stepper motor , bag length stable, accurate positioning;
Using the PID temperature controller, temperature control more accurate;
PLC control the action of the whole machine, man-machine interface display, easy to operate;
All parts contacting material of SUS304 stainless steel, ensure health of products;
Part of the cylinder adopts imported parts, ensure the working accuracy and stability.
The native additional device can complete the flat cutting, date printing, easy tear etc function.
Main Parameter
| Model | XY-86B |
| Sealing method | Three side sealing |
| Filling Capacity | 1-10g/bag(Special specifications can be prescribed separately) |
| Packing Speed | 30-60bags/min |
| Inner bag size | L:50-75mm,W:50-75mm |
| Outer bag size | L:85-120mm,W:75-95mm |
| Tag size | 25x25mm |
| Voltage | 220v,50hz,single phase,3.7kw |
| Weight | 650kg |
| Overall Dimension | 1050x700x1400mm |
