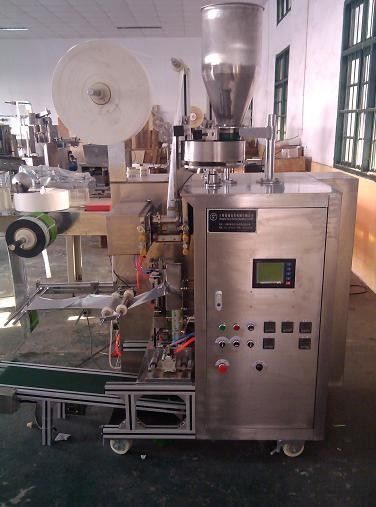

XY-86A Automatic Inner and Outer Tea-bag Packing Machine

XY-86A Automatic Inner and Outer Tea-bag Packing Machine

1,APPLICATIONS:

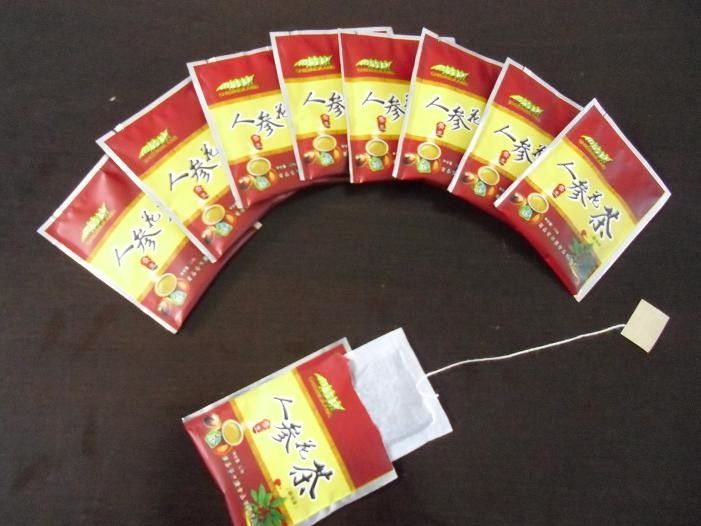

The machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy teas.

2,FEATURES

Automatic tea bag packing machine with thread,tag and envelop is a hot-sealed,automatic and multifunction packing equipment ,The main characteristic of this equipment is it can molding in one time to protect the material from the direct contact with workers’hands and improve the efficiency.The inner bag is filter paper with thread and label automatically is available.The outer bag is composite paper (including various kinds of composite membrane hotsealable such as paper/plastic, plastic/plastic, plastic/aluminum/plastic, paper/aluminum/plastic.)The most advantage is ,the capacity ,the inner bag and outer bag can be adjuster fexibly,and the size of the inner and outer bag also can be adjuster according to the requirement of the customer to get the perfect effect.

3,TECHNICAL DATA:

FEATURES:the inner bag with thread and tag automatically

FILLING RANGE:3-15(ml)

CAPACITY:30-40(bag/min)

INNER BAG SIZE:W:50-80(mm ) L:50-70(mm)

OUTER BAG SIZE: W:70-90(mm) L:80-120(mm)

TAG SIZE:W:25mm L:18-22mm

THREAD LENGTH :155mm

TOTAL POWER : 220V/50HZ /3.5KW

DIMENSION(L*W*H) :900*610*1800(mm)

NET WEIGHT:500KG GROSS WEIGHT:550KG
