Place of Origin:
CHINA
Brand Name:
XINYU
Model Number:
XY-90BF-720

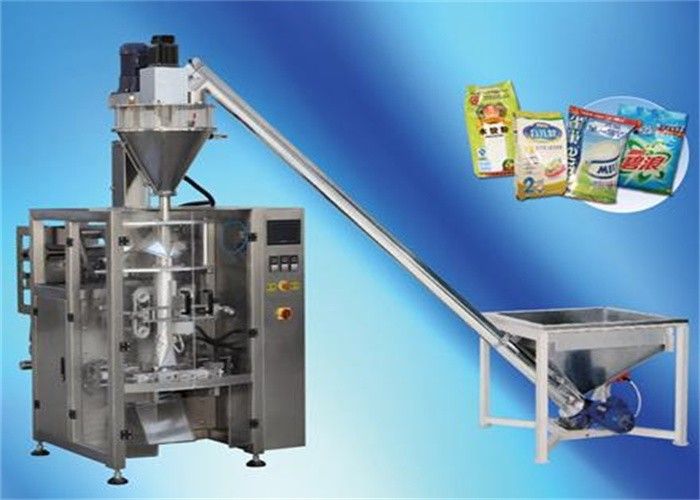

XY-90BF-720 Type Powder Packing Machine
Scope of application:
The machine is suitable for powder material such as fully automatic packaging.
The machine features:
1,Packaging material driven by servo motor control, bag length stable, accurate positioning;
2,Using the PID temperature controller, temperature control more accurate;
3,PLC control the action of the whole machine, man-machine interface display, easy to operate;
4,All parts contacting material of SUS304 stainless steel, ensure health of products;
5,Part of the cylinder adopts imported parts, ensure the working accuracy and stability;
6,The native additional device can complete the flat cutting, date printing, easy to tear, and other functions;
The main technical parameters:
Model: XY-90BF-720
The sealing form: back seal
Measuring range: 50-5000 grams/bag (special specifications can be prescribed separately)
Packing speed:20-50bags/min
Bag size: length: 50 ~ 500 mm ,wide: 60 ~ 350 mm
Input power: 380 V / 50 hz
Total power: 3.7 kw
The weight: 650 kg
Installation dimensions: 1400 x1300x2200 mm
Packing materials:POPP/CPP,POPP/VMCPP,CPP/PE composite material,such as in cellophane,paper,polyester film,aluminum foil and other materials for coating composite high-pressure polyethylene.Cylindrical flat, outer diameter 360 mm or less, skeleton inside diameter = 75 mm, width of film is 420 mm or less.
Using the environment temperature: - 5 ℃ ~ 45 ℃, cannot freeze;30-85% relative humidity, condensation is not allowed.
Power source: compressed air (no water after filtration) 0.6 x 105 pa
The total gas consumption: 350 L/min
