Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation

Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation

high speed blister packing machine

quantitative filling machine

Place of Origin:

CHINA

Brand Name:

XINYU

Model Number:

KD-590

Contact Us
Request A Quote
Product Details
Products Name:
KD-590 Automatic Pillow-type Packing Machine
Raw Material:
304SS/316SS
Feature:
Automatic,PLC,Touch Screen
Application::
Biscuits,bread ,speed Wheaten Food, Moon ,cake
High Light:

high speed blister packing machine

,

quantitative filling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
wooden standard packing
Delivery Time
30 days after receive the down payment
Supply Ability
30
Product Description

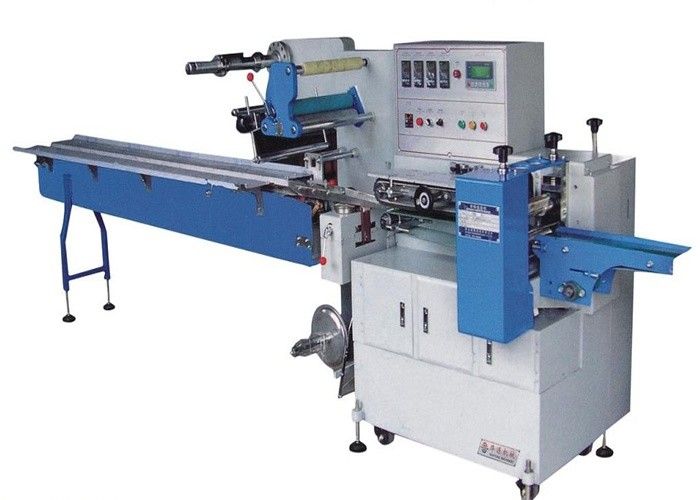

KD-590 Automatic Pillow-type Packing Machine



Scope of application:



Suitable for biscuits, packaging of all kinds of objects with regular solid state, such ,as bread ,speed wheaten food, moon ,cake ,candy ,medicines, dailynecessities, five metalspart, paper carton or the tray , etc



 Features:



Compact structure, stable function and simple operation.

Double frequency converter controller,length of package will cut immediately once setting, adjustment needless, saving time and film.

It adopts imported electric appliance, touch manmachine interface, convenient parameter setting.

Self-cheching function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.

Dependant temperature PID controlling suitable for various materials of packagingmenbrane.Position stop function, no adhesive and no waste of membrane.

Clean rotation system, more reliableoperation and more convenient maintenance.

All the controlling operates by the software,convenience for function ad-justment and technical up grading.



Main Technical Date

Max.film width 600mm
Max packaging capacity(according to its material to fix) 40-120 times/min
Suitable film thickness 0.03-0.06mm
Length of bags 110-800mm
Packaging width 80-250mm
Packaging height 10-150mm
Total power 4.7Kw 220V/380V
Overall dimensions(L x W x H) 6000 x 1000x1500mm
Weight 880KG



Performance And Characteristics



1.Compact structure, stable performance, easy maintenance. The double frequency conversion control, bag length is set is cut, don't need to adjust empty, one pace reachs the designated position, time-saving membrane





Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation 0

Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation 1



Uses the Japanese panasonic imported frequency converter



2.Touch human-machine interface, convenient and quick parameter setting fault self-diagnosis function, fault shows at a glance.Look the Gao Gan degree of photoelectric tracking,



3.Temperature independent PID control, better suited to a variety of material coated.Positioning stop function, non-stick knives, at no cost

Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation 2

4. The rotation system is concise, more reliable, more convenient maintenance.
Adopt import stepper motor. The noise is small, the tracking accuracy!Optional (servo motor)
5. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.6. The rotation system is concise, more reliable, more convenient maintenance.
Adopt import stepper motor. The noise is small, the tracking accuracy!Optional (servo motor)
6. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.

Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation 3

Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation 4

Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation 5

Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation 6

Compact Dry Food Automatic Packing Machine Pillow Type Simple Operation 7
