Place of Origin:
CHINA
Brand Name:
XINYU
Model Number:
SZG-500

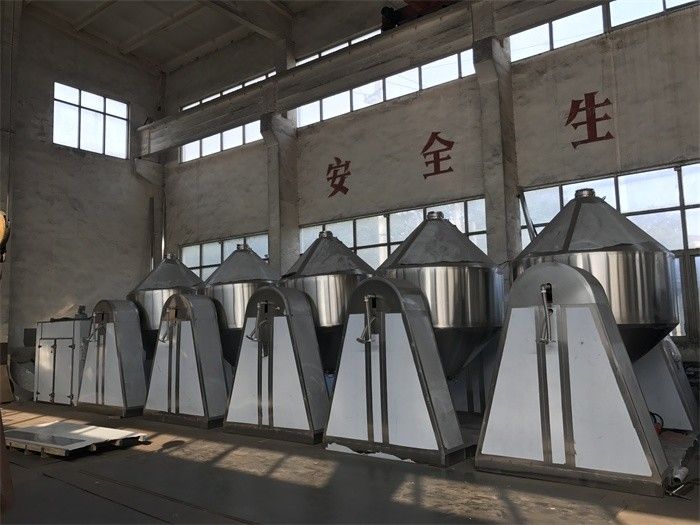

Double Tapered Rotary Vacuum Dryer
The double cone rotary vacuum dryer is widely used in the drying of granules, including crystal materials, in pharmaceutical, chemical, food, dyestuff, powder metallurgy and other industries.
The dryer is cylindrical in shape and conical at both ends,The top of the cone is provided with a discharge port (which is also used as a hole),Inside the machine, it is divided into three layers,The middle of the heating medium jacket can be with heat-conducting oil, steam (less than 0.3MPa pressure gauge) or circulating hot water (<0.3mpa pressure gauge),The medium temperature is medium alkali superfine glass cotton, the energy consumption is very few; the inner layer releases the material,Rotary drying under vacuum conditions, the material edge flip side wall by acquiring heat, accelerating the drying, so as to avoid the heat sensitive materials in the dry surface yellowing phenomenon, and greatly shorten the drying time, drying time is only similar material needed in a vacuum oven in the 2/3, improve the labor productivity, especially suitable for the oxidation of dangerous materials and allergic drying;
in the shape of the material requirements without damaging the goods, strictly limit the metal ion materials and discharged volatiles (or toxic substances) to recovery (or destroy toxic) materials, is to demonstrate its superiority.
Both ends of the cylinder are equipped with the most advanced rotary joint to seal, which changes the bad phenomenon that the packing seal is easy to wear and vacuum leakage.
The dryer has the advantages of simple operation, convenient feeding and discharging, greatly reducing the labor intensity of workers, reducing the environmental pollution caused by the drying process of the material, improving the quality of the products, and meeting the requirements of the drug management standard "GMP"
Parameter
1,Volume:500L
2,Feeding Capacity:100KG( available capacity 250L)
3,Speed of revolution: 0-6r/min(frequency control )
4,Power of motor: 1.5KW
5,Slewing height:2250MM
6,external dimensions: 2350*800*2250MM
