380v 50hz Automatic Sealing Machine 316SS Liquid Filling And Sealing Machine

380v 50hz Automatic Sealing Machine 316SS Liquid Filling And Sealing Machine

380v Automatic Sealing Machine

50hz Automatic Sealing Machine

316SS liquid filling and sealing machine

Place of Origin:

CHINA

Brand Name:

XINYU

Model Number:

BG series

Contact Us
Request A Quote
Product Details
Products Name:
Full Automatic Sealing Machine Liquid Filling And Sealing Machine
Raw Material:
304SS/316SS
Feature:
Automatic,PLC,Touch Screen
Application::
Yoghourt,water
High Light:

380v Automatic Sealing Machine

,

50hz Automatic Sealing Machine

,

316SS liquid filling and sealing machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
wooden standard packing
Delivery Time
30 days after receive the down payment
Supply Ability
20
Product Description

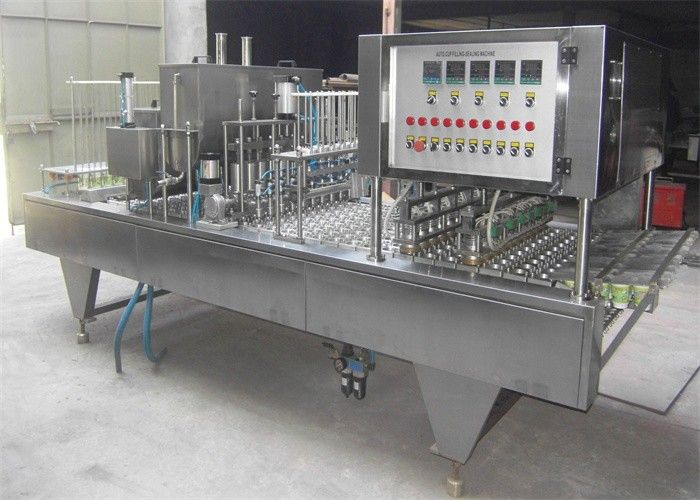

Full Automatic Sealing Machine Liquid Filling And Sealing Machine 380v 50hz



The machine has automatic cup , automatic filling , automatic opening , automatic sealing , automatic film cutting and automatic cup discharging . Except for stainless steel and electric cabinet plate , the machine is of stainless steel . The machine adopts gas - electricity combination , and the voltage is 380v50hz . The machine is suitable for packaging of materials such as pp , pe , pet and the like , and is suitable for the sealing of any type box and cup . The sealing is firm and reliable and free of leakage.



Parameter:



Temperature range:0-400℃,The machine frame adopts high - quality carbon steel welding,the outer package 304 stainless steel,the acid - resistant aluminum template transmission:the precision cam splitter stepping - type clearance operation,the high - performance speed reducer,the transmission is stable,the impact force is small,and the walking position is accurate.Sealing:Secondary hot - press sealing ,adjustable sealing pressure.The power is 18KW,the capacity is 12000-13000cups/hour,the diameter of cup is about 70mm,Fill capacity is 200ml-300ml,the rated pressure is 1.0-1.25Mpa.The machine size is 4500*1100*1700mm,the weight is 2000kg,The machine works about 4 seconds, sealing 16 cups at a time

380v 50hz Automatic Sealing Machine 316SS Liquid Filling And Sealing Machine 0
