1.4 Kw Automatic Sealing Machine Tray Gas Flushing Vacuum Packing Machine

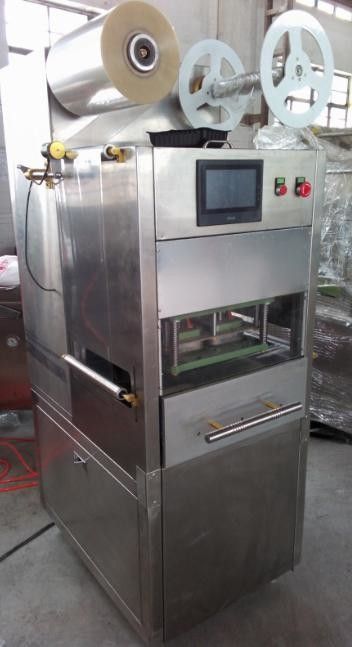

DZF-300 Type Tray Gas Flushing Vacuum Packing Machine

The machine adopts pneumatic sealing way, intelligent temperature controller. The machine adopts intelligent digital display temperature control system to control the sealing temperature, the temperature error is less than ±1, the sealing strength is high, gas replacement rate is above 95%, good sealing. Airframe adopt stainless steel design, in line with the relevant food hygiene standards. Execution of equipment parts adopt pneumatic control system, simplifies the mechanical structure, the failure rate significantly decreased, machine running more stable and safe, seal beautiful, greatly improving the production efficiency and service life of the equipment.

Operation procedure

1, Artificial put tray into the template;

2, The template come into automatically;

3, Automatic gas exchange (nitrogen oxygen carbon dioxide);

4, Automatic heat sealing;

5, Cutting film;

6, The template come out automatically

Main technical parameters

Packing box size (standard box):218x128x40mm;

Membrane maximum width: 300 mm;

Membrane diameter: 150 mm;

Packing speed: 200-300 boxes per hour;

Power supply: 220 v / 50 hz;

Working pressure: 0.6-0.8 mpa;

Total power: 1.4 kw;

The gas replacement rate: 99%;

Machine weight: 200 kg;

The machine size: 950 x600x1700mm
