Place of Origin:
CHINA
Brand Name:
XINYU
Model Number:
LPG50

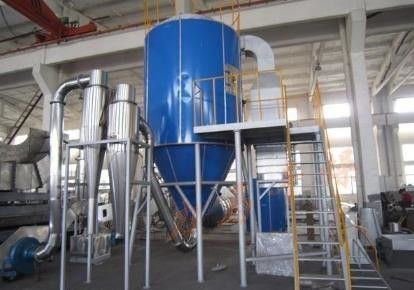

LPG50 Centrifugal Spray Cooling Tower
Equipment design conditions and requirements
Material name: paraffin wax
The inlet air temperature: 10 ℃
Exhaust temperature: 50 ℃
Spray quantity: 100 kg/h
Tower: negative pressure - 150 pa
The rotating speed frequency: 40-50 hz
The item number: 30 to 60 mesh
The atmospheric pressure: 760 mmh2o
Ambient temperature: 20 ℃
Absolute humidity: 80%
Power supply: 380 v, 3 phase, 50 hz
Design of equipment
Early selection: LPG50 centrifugal spray cooling unit,
Cooling system: (refrigerant is provided by the buyer)
Dust removal system: the secondary cyclone dust removal
Circulation system: send induced draft fan open cycle
Air filtration system: first, the effect of air filter
Feeder system: peristaltic pump stepless adjustable feeding
Blanking system: high vacuum double butterfly valve discharge tube (ingredients)
Control system: frequency converter adjusted atomizer speed, to ensure the best results display instrument display temperature, pressure, differential pressure, automatic tracking button control variable parameter and so on.
Parameter
| Spray amount | More than 100Kg/h | Tower diameter/tower high | 2.20M/4.5M |
| Operating temperature | Inlet Temperatur10℃ /Outlet Temperature 50℃ | atomizer |
Speed 20000—25000r.p.m Disc diameter 120mm |
| Power | 11KW | ||
| refrigerant | Supply by buyer | ||
| air consumption | 0.3m3/min | The system volume | 2500 m3/h |
| System pollination rate | More than 99% | receiving | whirlwind + water film dust collector |
| Drying system in the form | Open cycle system | Feeding way | Peristaltic pump stable feed automatically |
| Hot air way | flow way | refrigerant | Supply by buyer |
| Products capture mode | The secondary cyclone + water film dust removal combination | Atomization way | Centrifugal atomization |
| The control mode | Set arbitrary inlet air temperature, automatic control, digital display of temperature, pressure, differential pressure, frequency conversion adjustment atomizing speed, etc | ||
