Compact Design Automatic Production Line Paste Liquid Filling Machine Convenient Installation

Compact Design Automatic Production Line Paste Liquid Filling Machine Convenient Installation

liquid filling machine

vacuum freeze dryer

Place of Origin:

China

Brand Name:

XINYU

Model Number:

GT2T-2G

Contact Us
Request A Quote
Product Details
Material:
304SS
Feature:
Automatic
Highlight:

liquid filling machine

,

vacuum freeze dryer

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden standard pack
Delivery Time
60 days when receive the down payment
Payment Terms
T/T
Supply Ability
20
Product Description

GT2T-2G Automatic Paste &Liquid Filling Machine



1.Product Description:



Automatic Bottling Liquid Filling Machine


With2 filling heads and 2cylinders, quick and accurate filling possible.Suitable for such as Bottling filling for sauce cream,liquid,oil cosmetic etc.Widely apply to manufacturer of oil,honey,oil ,sauce,chemicals,medicine ,pharmaceutical etc,or any paste and liquid type industrial.
With Taiwan's AirTac pneumatic elements and Taiwan's electrical control parts adopted, its performance is stable.


Quality guaranteed by employing Korean AUTONICS photoelectric eyes, frequency inverter and Schneider Electric Co. ' electrical elements.
Compact design, attractive appearance, convenient installation and filling adjustment, no missed filling and accurate filling dosage with a counter provided.

1.2 Main Specification:

Filling speed 15-35 Bottle/min
Filling accuracy ≤±1%
Air pressure 0.4-0.6MPa
Power 500W
Power supply 220/110V 50/60Hz
Filing volumes range 50-500ml

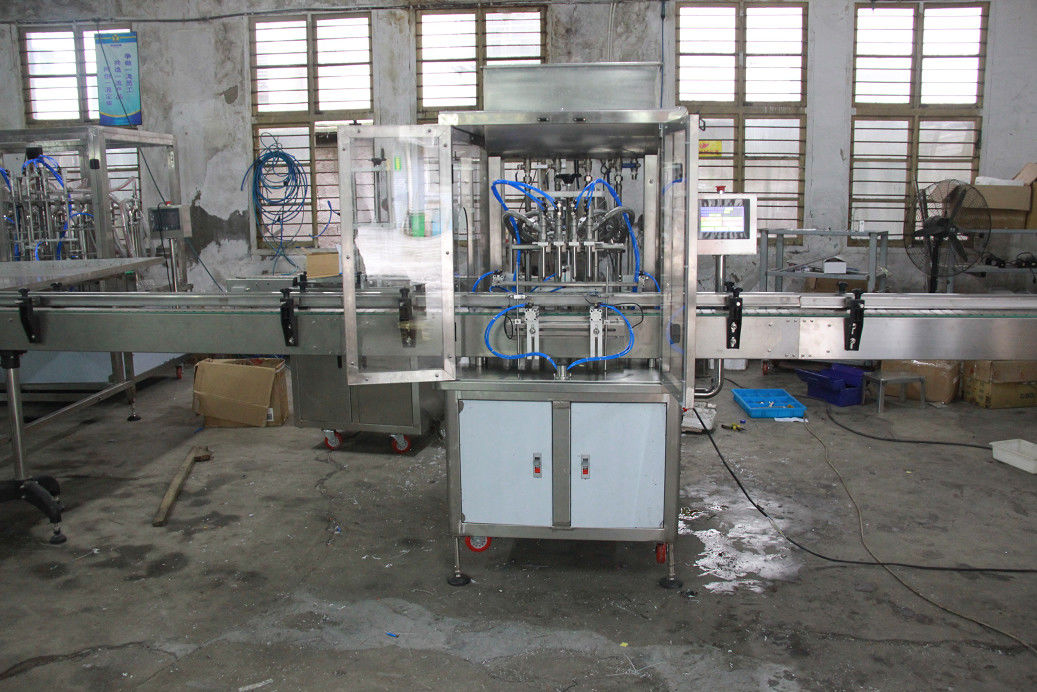

1.3 Machine Picture:





Filling Heads &Protective Door Picture Show:



Compact Design Automatic Production Line Paste Liquid Filling Machine Convenient Installation 0



Materials Receiver for Stopping Materials stick on the Jar:

Compact Design Automatic Production Line Paste Liquid Filling Machine Convenient Installation 1



2.YQX-G Automatic single head can sealer



2.1 Product Description:



The machine adopts Y802-4 power 0.75 kw three-phase asynchronous motor, the speed of 1390 r/min.The triangle wheel and worm gear deceleration of 40 r/min, worm gear under the action of every turn CAM to upgrade a week to complete a journey up and down, and at the same time in the gear differential rotation of the two groups respectively drive CAM with rolling wheel, complete the whole process of rolling a tank sealing work.The lid need artificial stacked.



Specification:

1. Machine Size(mm):2000*800*1850

2. Weight (kg): 300

3. Power(kw): 0.75kw

4. Production(C/h): 2000

5. Jar diameter: Φ50-70 H90-200(special size need to customized)

2.2Picture for Reference:

Compact Design Automatic Production Line Paste Liquid Filling Machine Convenient Installation 2
Compact Design Automatic Production Line Paste Liquid Filling Machine Convenient Installation 3

Compact Design Automatic Production Line Paste Liquid Filling Machine Convenient Installation 4

Compact Design Automatic Production Line Paste Liquid Filling Machine Convenient Installation 5
