Hot Sale High Efficiency Commercial Spice Powder Grinding Garlic
Hot Sale High Efficiency Commercial Spice Powder Grinding Garlic

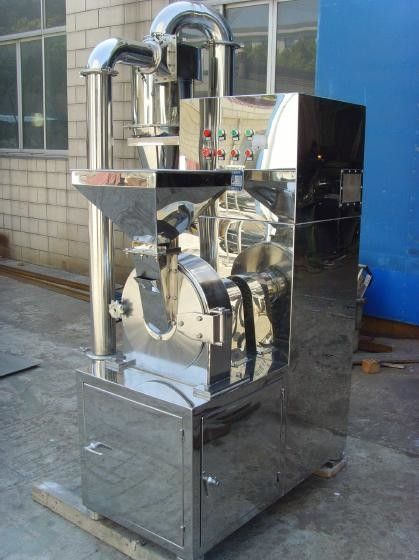

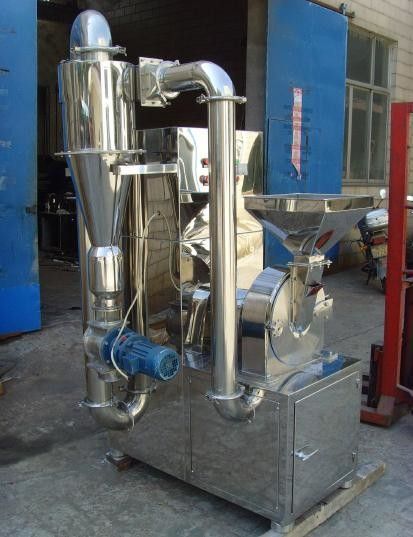

The machine has stable technical performance , high production capacity and beautine. It has large of application. It can get very ideal result to pulverize the drying fibre material. It is suitable for heat sensitivity materials such as sugar, plastic powder and Chinese traditional medicine.
By means of relative motion between movable and fixd fluted discs,material is crushed through impact and friction
of the teeth and impact among the materials .Designde according to GMP standard and wholly made of stainless
steel.model 30B,moble 40B and model60Bcrushing chamber is equipped with water cooling jacket,with simple
structure,high output and easy cleaning,this machine is the most ideal crushing equipment at present
Universal Grinder 1.Certificate:ISO9001:2000. 2.Simple structure ,high output,easy cleaning. 3.The best grinding fineness.
| Model | 30B |
| Main shaft speed (r/min) | 5300 |
| Main motor power(kw) | 7.5 |
| Clsoing fan motor power(kw) | 0.37 |
| Draught fan motor power(kw) | 1.1 |
| Inlet material diameter(mm) | 10-40 |
| Pulverizing fineness (mesh) | 60-200(Optional adjustment)-General usage |
| Pulverizing capacity (kg/h) | 50-250 |
| Main engine temperature rising(°C) | ≤65 |
