Universal Stable Pulverizer Grinding Machine Cooling With Dedusting Water

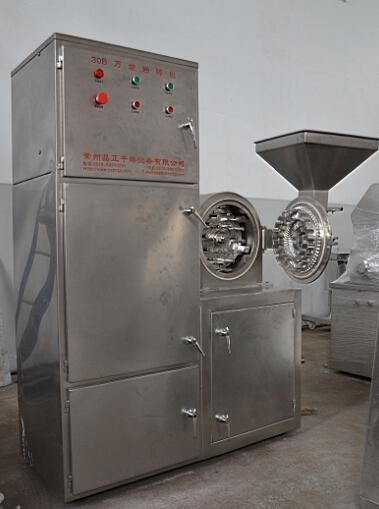

WF-40B-X Universal Grinder(Cooling with dedusting water)

Description:

This series of high-speed stainless steel crusher are integral, solid structure, stable operation. All stainless steel grinder made of stainless steel grinder, except the shell is cast iron, the rest are made of stainless steel, has good corrosion resistance, can guarantee the purity of crushing materials.

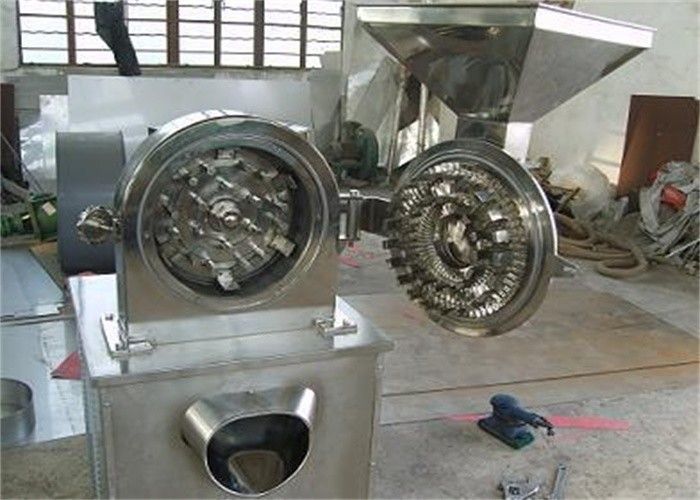

This series of grinding machine is mainly composed of the main chassis, chassis, spindle, moving disk, fixed disk, sieve, hopper and other major components, the movable disc fixed on the spindle, fixed disk installed on the front cover, after the motor starts, the disk with the spindle together for high speed rotary motion.The advanced grinding block is combined with dust catcher, which not only meets the requirements of crushing, but also solves the problem of crushing and flying. It is an excellent equipment in industrial production, and conforms to the requirements of "GMP" in drug production

Main Parameter:

1,Speed of Main Shaft:3400 r/min

2,Power:7.5+0.55KW

3,Fineness of pulverization:20-120Mesh

4,Production Capacity:160-500kg/h(According to the particle size of the finished product)

5, Working temperature :<55℃

6,Noise:<85DB

7,Spindle rotation direction: clockwise direction

8,Discharging type: self suction

9,Overall Size:1400mm×720mm×1750mm
