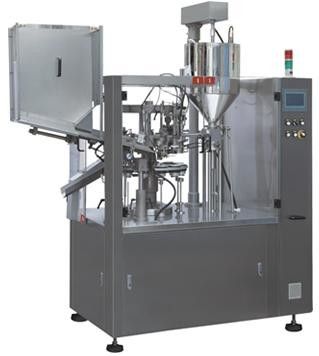

High Efficiency Aluminum Automatic Tube Filling Sealing Machine 75 Tubes / Min

High Efficiency Aluminum Automatic Tube Filling Sealing Machine 75 Tubes / Min

capsule filling equipment

pill filling equipment

Place of Origin:

CHINA

Brand Name:

XINYU

Model Number:

GF-80D Plastic Tube and Aluminum Tube Filling and Sealing Machine

Contact Us
Request A Quote
Product Details
Products Name:
GF-80D Plastic Tube And Aluminum Tube Filling And Sealing Machine
Raw Material:
304SS/316SS
Feature:
Automatic,PLC,Touch Screen
Application::
Tooth Paste,cosmetics
High Light:

capsule filling equipment

,

pill filling equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
wooden standard packing
Delivery Time
30 days after receive the down payment
Supply Ability
30
Product Description

GF-80D Plastic Tube and Aluminum Tube Filling and Sealing Machine



Characteristic:



The transmission part is closed under the platform safely with no pollution. The Filling and Sealing part is installed in the visible cover, which is in the half-closed static-free frame above the platform. It is easy to watch, operate and maintain. PLC and touch screen, controlled and man-machine conversation interface. The rotary disk is cam-driven, so it works fact and accursedly. The tube hopper has speed-adjust manipulator, tube control device and vacuum generator, etc. The tube loading efficiency is more than 99.9%. The upper tube rail automatically feed the soft rube into the working station. The photoelectric target-aiming working station employs accurate detector and marching type motor, ensuring the tube design at the correct position. Filling nozzle enters tube inside to fill. As it fills it will moves up and prevent material from over flowing and spilling. No feeding is done when there is no tube available. The sealing manipulator is flexible and multi functional. Through different adjustment, it can accomplish the operation of two edge folds, there edge folds, and saddle-shaped edge folds.


Technical Parameters

Model GF-80D
Applicable Plastic Tube or Aluminum Tube
Max. Production Capacity 75 tubes/min
Filling Volume 3-250ml
Filling Accuracy ≤±1%
Suitable Tube Length Plastic Tube: 50-210mm
Aluminum Tube: 50-160mm
Suitable For Tube Diameter Plastic Tube: Φ13-50mm
Aluminum Tube: Φ13-35mm
Overall Dimension 2500X1200X2400mm
Weight 1200kg
Power Supply 380V/50Hz/3P
Main Motor 2.2KW
Hot Air Generator 3KW
Heating Barrel (Optional) 2.18KW
