Place of Origin:
CHINA
Brand Name:
XINYU
Model Number:
NJP-800 Automatic Capsule Filling Machine

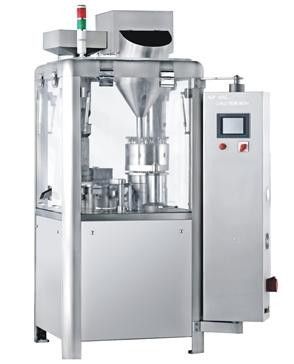

NJP-800 Automatic Capsule Filling Machine
Application:
NJP800 automatic capsule filling machine is completely automatical. We absorb the advanced technology from home and abroad, and then combine with the actual situation in China. We develop and research, finally manufacture the machine.
This machine runs as per automotive separating revert interval, feeding, removing useless capsule, clipping and coming capsule, cleaning mold are completed at same time, which has reach high precision and low noise levels. With the automatic controlled, the speed can be adjusted by frequency inverter. Digit display, the machine is easy to operate. The suitability of the machine is well. The filling precision is high. The machine adopts more holes type working principle which calculate exactly. The filling error is better than the standard of the government pharmacopoeia. The machine is equipped with the protection device for people and machine. When it is lack of material, the machine will stop automatically.
Technical Parameters
| Model | NJP-800 |
| Filling dosage form | Powder, granular, pellet & tablet |
| Production capacity (pcs/min) | 800 |
| Capsule size | No.00-No.5 |
| Capsule qualified rate | >99% |
| Filling precision | <±4% |
| Voltage | 380v/50HZ |
| Power (kw) | 4 |
| Noise (dBA) | Lower 80 |
| Overall size(mm) | 840*960*1800 |
| Weight (kg) | 900 |
