Over - Wrapping Automatic Cellophane Wrapping Machine PLC Control System

Over - Wrapping Automatic Cellophane Wrapping Machine PLC Control System

shrink wrap sealer machine

shrink sleeve packaging machine

Place of Origin:

CHINA

Brand Name:

XINYU

Model Number:

TMP-300Z

Contact Us
Request A Quote
Product Details
Products Name:
TMP-300Z Automatic Facial Tissue Cellophane Over-wrapping Machine
Raw Material:
304SS/316SS
Feature:
Automatic,PLC,Touch Screen
Application::
Facial Tissue
Highlight:

shrink wrap sealer machine

,

shrink sleeve packaging machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
wooden standard packing
Delivery Time
30 days after receive the down payment
Supply Ability
30
Product Description

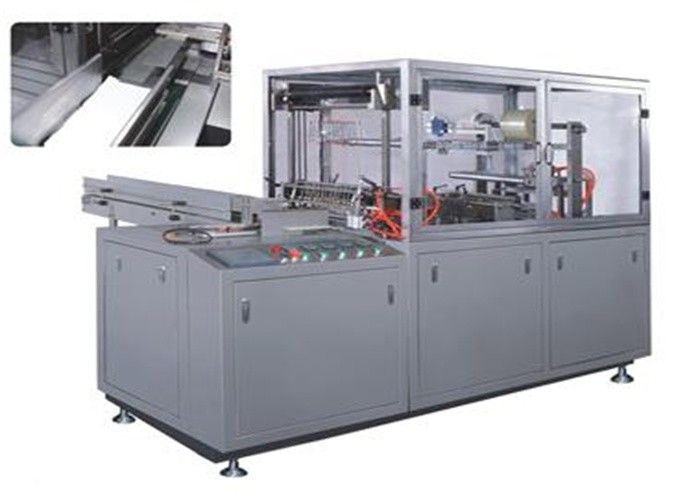

TMP-300Z Automatic Facial Tissue Cellophane Over-wrapping Machine



Instruction:



This machine is suitable for packing facial tissue, table napkin without carton box, use cellophane film instead of carton box. Cut down the cost packing material no pollution up to international packaging style.



Main Future:



1. Have easy tear line, pullout more convenient.

2. PLC control system, friendly interface, and intelligence software can show the fault automatically.

3. Servo motor control feeding film automatically. Easy and accurate to adjust feeding length and speed. Film feeding is accurate and smoothly.

4. Adopt cylinder driving with stable operation. Accurate synchronization; easy to adjust, and perfect sealing.

5. Hi-sensitive electric-eye, which can trace the printed web on film, make the sealing and cutting on correct position.

6. Compact structure, easy for operation and maintenance; good safety design provide good protect to operator.



Main technical parameter:



Model TMP-300Z
Packaging material OPP,BOPP , PVC
Production capacity 5-30 packs/min.
Packaging size L(50-300) ×W(40-220) ×H(10-100)mm
Power supply AC380V 50Hz, 6.5Kw
Work pressure 0.6 MPa
Air consumption 400L/min
Weight 750Kg
Overall dimension (L x W x H , mm) 2300×910×1850mm
Dimension of input table (L x W x H , mm) 1650×320×930mm
