Pharmaceutical Grade Three Dimensional Automatic Wrapping Machine BTB-300P Transparent Film Box Sealing Equipment

Pharmaceutical Grade Three Dimensional Automatic Wrapping Machine BTB-300P Transparent Film Box Sealing Equipment

pharmaceutical wrapping machine

transparent film sealer equipment

automatic box overwrapping machine

Place of Origin:

CHINA

Brand Name:

XINYU

Certification:

ISO9001, CE, GMP

Model Number:

BTB-300P

Contact Us
Request A Quote
Product Details
Highlight:

pharmaceutical wrapping machine

,

transparent film sealer equipment

,

automatic box overwrapping machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
USD 8000-18000/Set
Packaging Details
Export Standard Wooden Case With Waterproof Membrane
Delivery Time
25-40 Working Days
Payment Terms
T/T, L/C, Western Union
Supply Ability
20 Sets/Month
Product Description

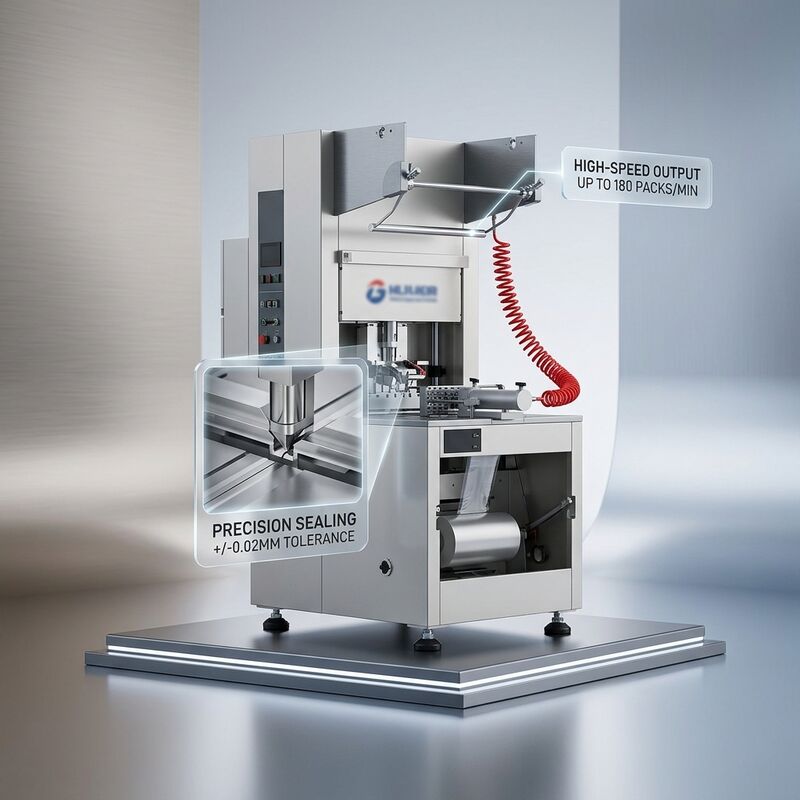

The BTB-300P Pharmaceutical Grade Three Dimensional Automatic Wrapping Machine is purpose-engineered for the stringent requirements of pharmaceutical packaging environments. Constructed entirely from 304 stainless steel with a fully enclosed design, this transparent film overwrapping system delivers GMP-compliant sealing for medicine boxes, health supplement cartons, and medical device packaging. The machine processes 40 to 80 units per minute using OPP, BOP thermal sealing film, or thermal viscous cellophane, creating a tamper-evident transparent overwrap that enhances product security while showcasing the printed packaging graphics underneath. Every surface is polished to pharmaceutical standards, and the design eliminates particle traps and crevices where contaminants could accumulate.

Key Features
  • Full 304SS GMP Construction: Complete machine body and all product-contact surfaces fabricated from 304 stainless steel with mirror-polished finish, meeting pharmaceutical cleanroom requirements and facilitating validated cleaning and sanitization protocols.
  • Tamper-Evident Transparent Sealing: Three-dimensional overwrap technology applies OPP or BOP film with anti-falsification easy-pull tear tape, providing visible tamper evidence and moisture protection for pharmaceutical products.
  • PLC Precision Control System: Multi-function digital frequency inverter with stepless variable speed adjustment and automatic counting ensures consistent wrapping quality at precisely controlled throughput rates.
  • No Box No Film Mechanism: Intelligent film feeding clutch system detects missing boxes and automatically halts film dispensing, eliminating material waste and preventing machine jams during pharmaceutical packaging runs.
  • Automatic Feeding And Counting: Integrated automatic feeder system with digital counter streamlines production flow and provides accurate batch count documentation for pharmaceutical quality records.
  • Double Screw Lift Adjustment: Dual screw lifting mechanism ensures smooth and even height adjustment of the wrapping head, overcoming the unilateral adjustment instability common in conventional packaging machines.
  • Comprehensive Safety Protection: All drive components are equipped with overload protection devices and fault diagnostic indicators, with automatic alarm and shutdown functions for operator safety.
Technical Specifications
ParameterSpecification
ModelBTB-300P
Production Capacity40-80 bags/min
Packing MaterialOPP, BOP Thermal Sealing Film, Cellophane
Packing Specification (L×W×H)L40-200mm × W15-130mm × H10-50mm
Power Supply220V, 50-60Hz
Gross Power4.5 kW
Machine Weight650 kg
Overall Dimension2100 × 750 × 1550 mm
Main Material304 Stainless Steel (Full Body Enclosure)
Control SystemPLC With Digital Frequency Inverter, Touch Panel
Feeding MechanismAutomatic Feeder With Digital Counter
Film AdjustmentDouble Screw Lift, Stepless
Safety FeaturesOverload Protection, Fault Alarm, Auto-Stop
Mold ChangeoverQuick-Release, Tool-Free
CertificationISO9001, CE, GMP Compliant Design
Applications

The BTB-300P is specifically designed for pharmaceutical and healthcare packaging applications where product integrity and regulatory compliance are paramount. Primary applications include overwrapping of pharmaceutical tablet cartons, capsule boxes, syrup bottle cartons, ointment packaging, and injectable medicine boxes. The machine also handles health supplement packaging including vitamin bottles, herbal extract boxes, and nutraceutical cartons. Medical device packaging applications encompass surgical mask boxes, syringe cartons, diagnostic kit packaging, and sterile equipment boxes. The transparent film overwrap provides moisture barrier protection and tamper evidence while maintaining full visibility of printed product information and regulatory labeling. The machine is compatible with cartoning machine upstream integration for fully automated pharmaceutical packaging lines, and can incorporate anti-falsification easy-pull tear tape for enhanced product security.

Packaging & Quality Assurance

Each BTB-300P wrapping machine undergoes comprehensive factory acceptance testing including full-speed trial runs with customer-specified box dimensions and film materials, wrapping quality inspection for seal integrity and appearance, and PLC function verification. The machine is securely mounted on a shipping pallet and enclosed in a fumigated export-standard wooden crate with reinforced steel strapping and waterproof membrane. All stainless steel surfaces receive protective film coating to prevent transit scratches. Documentation package includes complete operation manual, electrical wiring schematics, PLC parameter guide, mold adjustment instructions, and spare parts catalog. Installation supervision and on-site operator training are available upon request. Standard warranty covers 12 months from commissioning against manufacturing defects in materials and workmanship.
