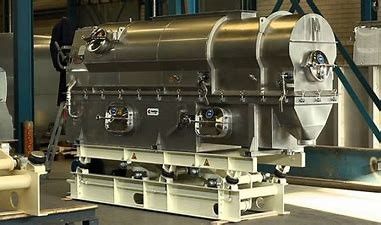

100kg/H Pharmaceutical 316SS Button Typr Carrier Fluid Bed Dryer Granulator

100kg/H Pharmaceutical 316SS Button Typr Carrier Fluid Bed Dryer Granulator

316SS fluid bed dryer granulator

100kg/h fluid bed dryer granulator

316SS carrier fluid bed dryer

Place of Origin:

CHINA

Brand Name:

XINYU

Model Number:

ZLG

Contact Us
Request A Quote
Product Details
Products Name:
ZLG Series Vibrating Fluid Bed Dryer
Raw Material:
304SS/316SS
Feature:
Button Type
Application:
Food,feed,pharmaceutical Products
Highlight:

316SS fluid bed dryer granulator

,

100kg/h fluid bed dryer granulator

,

316SS carrier fluid bed dryer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
Wooden carton packing
Delivery Time
40-50 days after the down payment
Product Description

ZLG Series Vibrating Fluid Bed Dryer



Working principle:


Raw material is fed into the machine from inlet, and moves forward continuously along with the level of fluidized-bed under action of vibration. The hot air passes through fluidized-bed and carries out heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and duster, and the dry raw material is discharged through discharge outlet.

Scope of application:

1) Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid
2) Foodstuff and construction material industries: lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds
3) Can also be used for raw materials to add up damp or cooling

Features:

  • Raw material is heated evenly and heat exchange is fully used. Dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%
    2) Vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life
    3) The fluidized state is stable and no dead angle and phenomenon of breaking out
    4) Good in regulation and wide in suitability
    5) Small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials giving anomalous shape
    6) It is effective to prevent from cross pollution between raw materials and air,because the equipment adopts fully closed structure. The environment of operation is clean.

Technical parameters:



Model Area of fluidized-bed ( m2) Temperature of inlet air ºC Temperature of outlet ºC Capacity to vapor moisture ( kg/h ) Vibration motor
model power(kw)
ZLG0.30x3 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2
ZLG0.30x4.5 1.35 35-50 ZDS31-6 0.8×2
ZLG0.45x4.5 2.025 50-70 ZDS32-6 1.1×2
ZLG0.60x4.5 2.7 70-90 ZDS32-6 1.1×2
ZLG0.45x6 2.7 80-100 ZDS41-6 1.5×2
ZLG0.60x6 3.6 100-130 ZDS41-6 1.5×2
ZLG0.75x6 4.5 120-140 ZDS42-6 2.2×2
ZLG0.9x6 5.4 140-170 ZDS42-6 2.2×2
ZLG0.60x7.5 4.5 130-150 ZDS42-6 2.2×2
ZLG0.75x7.5 5.625 150-180 ZDS51-6 3.0×2
ZLG0.9x7.5 6.75 160-210 ZDS51-6 3.0×2
ZLG1.2x7.5 9 200-260 ZDS50-6 3.0×2
