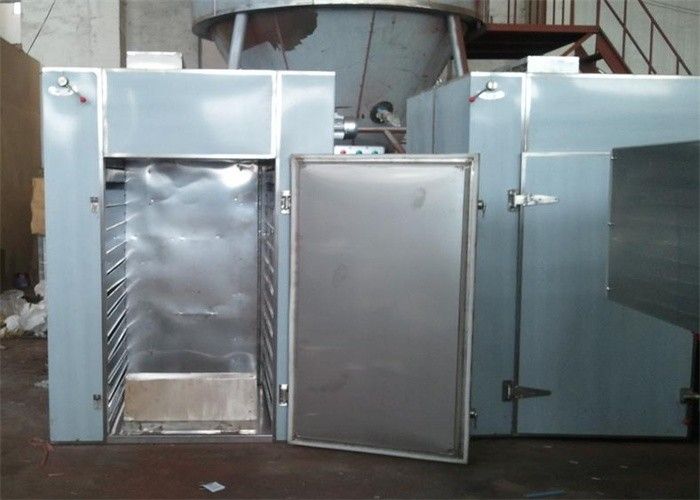

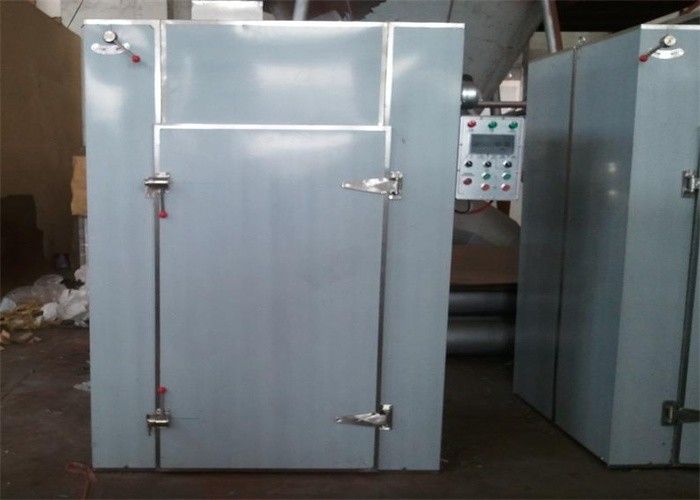

Hot Air Drying Oven with forced air circulation industrial tray dryer
Most of the hot air in the circulation, high thermal efficiency, save energy.Use of forced ventilation and equips with adjustable air distributing plate, material dry evenly.Heat source can use steam, hot water, electricity, hot blast stove and wide selection.Low noise, smooth operation.Temperature control, easy installation and maintenance.Applicability is wide and can dry various materials, it is general drying equipment.
Scope of application:
Hot air circulation drying oven is suitable for pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry sectors such as material and product heat curing, drying dehydration.Such as pharmaceuticals, Chinese medicine, Chinese medicine yinpian, water extract, powder, granule, granule, pill, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.
Main Parameter
| Model | Loading Volume (kg) |
Power (Kw) |
Consumed steam (Kg/hr) |
heat radiating area (m2) |
Air Volume (m3/hr) |
Temperature difference ℃ |
Baking plate (pc) |
Overall Dimension (mm) |
Drying car | Weight (kg) |
| CT-C-O | 60 | 0.45 | 15 | 15 | 3450 | ±2 | 24 | 1200×1000×1750 | 1 | 800 |
| CT-C-Ⅰ | 100 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 | 1300 |
| CT-C-Ⅱ | 200 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 | 1800 |
| CT-C-Ⅲ | 300 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3300×2220×2000 | 6 | 2200 |
| CT-C-IV | 400 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200×2290 | 8 | 2800 |
Technical parameters and relevant details:
1, heating heat source: steam, electricity and far infrared, electric dual purpose, for the user to choose from.
2, the use of temperature, steam heating 50 ~ 140 ℃, the highest temperature is 150 ℃;Electricity, far infrared temperature is 50 ~ 350 ℃.Using temperature greater than 140 ℃ or less than 60 ℃;When ordering to indicate.
3, equipped with automatic control system and computer control system for the user to choose from.
4, common steam pressure 0.2 ~ 0.8 MPa.
6, with 15 kw electric heating calculated on type 1, practical 5 ~ 8 kw/h
7, special requirements in that when you order it.
8, non-standard oven price negotiable.
9, the factory production of baking, baking plate size uniform, interchangeable.Baking plate size: 460 * 640 * 45mm.
10 ,Material type:
Enclosure walls are: A3 steel, stainless steel;
The lining material: galvanized sheet, stainless steel;
Drying materials are: A3 steel, stainless steel;
Baking plate material: aluminum, stainless steel, galvanized sheet.
Our products are sold all over the world, you can rest assured.
